Description

Main Functions :

• High accuracy timing : timing unit :1/100 seconds , Stability : 1ppm
• Seven digits time indication ( X : XX : XX . XX )
• Any phase can be timed
• Remote control through network
• Starting simultaneously with the photo-finish timing system
• The infrared ray in transmitter and receiver are modulated and demodulated greatly enhance the capability of resisting the light of the sun , guarantee the running stability .

System construction:

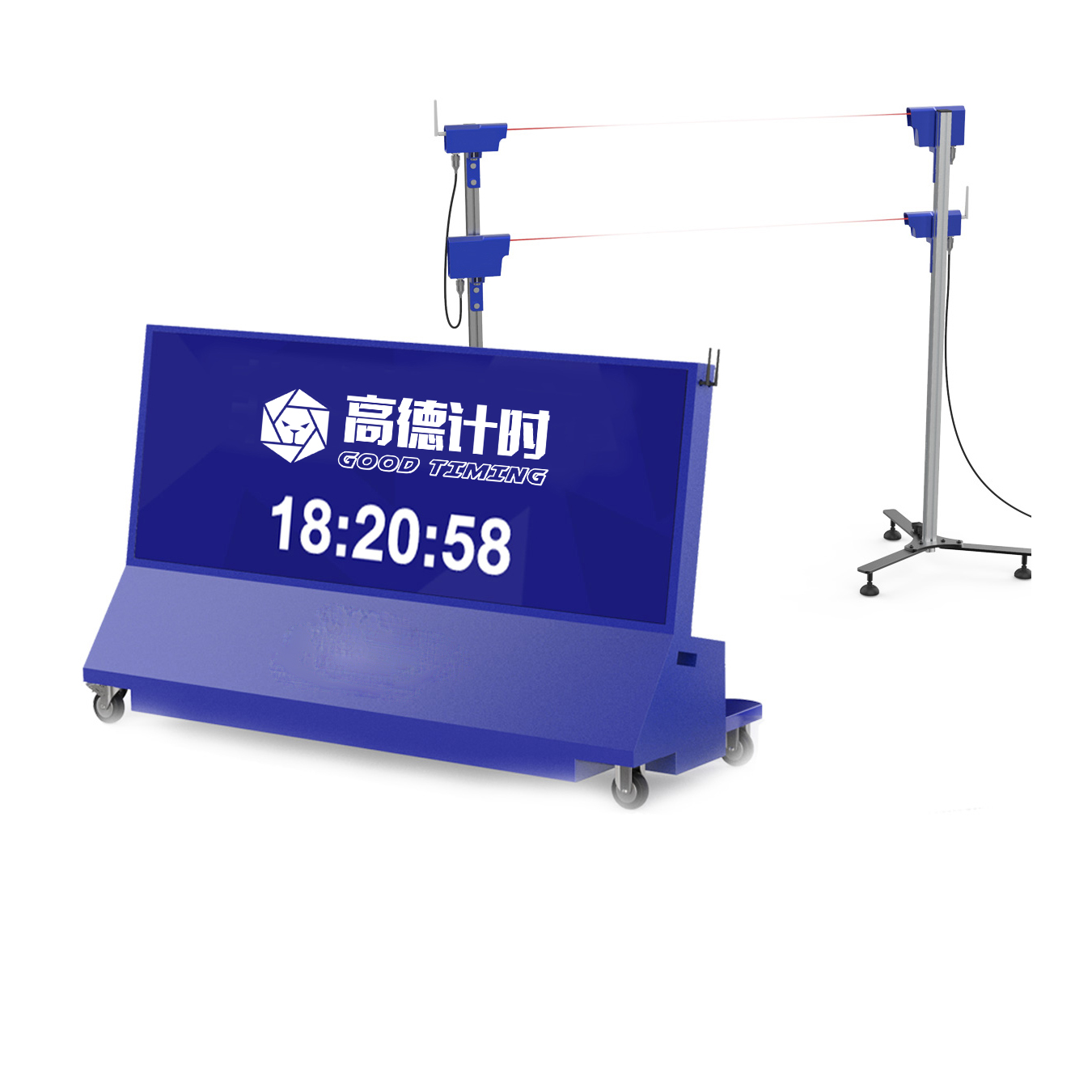

Split timing system is specially designed for large games . It can real time display the result of track event , measure the number one’s result ( only for reference , the formal results of track event must be based on the measurement of the photo-finish ), and the split times of long-distance races . At the same time , all times are passed instantaneously to TV or information boards and scoreboards . The system mainly consists of infrared launcher , infrared receptor , PC , measurement control software , starting synchronized unit , etc .
